Question

How to Setup Canon PIXMA TS9150 Wireless Connection?

Please let me know that how to setup Canon PIXMA TS9150 wireless connection. I am facing some issues while doing this. Help me.

  •   Mick
  •   1  Ans
  •   Jan 17, 2022
Answer - 1

Setup Canon PIXMA TS9150 Wireless Connection -

Use the easy Wireless connect method for setting up your PIXMA TS9120 printer on a wireless network. There are two methods that you can apply to complete the setup.

You can either download and run the setup file on your computer or start Easy Wireless connect on your printer. So, let's discuss both methods one by one.

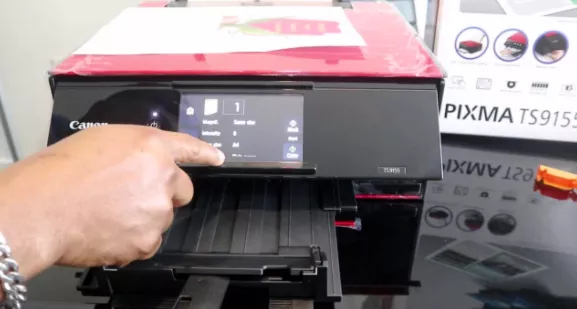

Method 1: Start Easy Wireless Connect on Your Printer

Below are the simple steps that you need to perform in order to Start Easy wireless Connect.

Step 1: Please ensure that your printer is turned on and the power light is glowing.

Step 2: Select the icon of the home screen given on the left side of the printer panel. If the error screen shows up, then select Ok.  After that, select the Home Screen icon.

Step 3: Select the WIFI icon.

Step 4: After that, select LAN settings

Step 5: Choose Wireless LAN and then choose Wireless LAN setup.

Step 6: Now, select the option of Easy Wireless Connect.

Step 7: Select Yes

Step 8: When the printer preparation is over, then you will see a screen where you will see the message "Follow the instructions on the smartphone or computer to perform the operation".

Method 2: Download and Run the Setup File on Your Computer

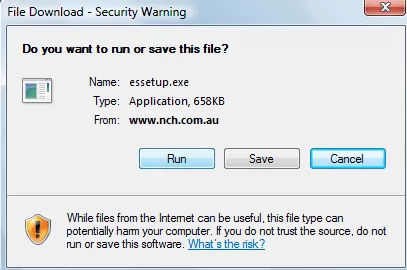

Step 1: The first thing that you need to do is to get the setup file. You can easily perform the setup process using the setup CD.

Step 2: Read out the details carefully and then check how to run the setup file if it does not run automatically. If you see a message that says, "Setup cannot be opened because Apple cannot be checked for malicious software", then select Ok.

After that, control-click the setup file and then launch it by clicking on Open. After that, you need to choose open in the error message window. This will let you go ahead with the program.

Step 3: Choose Download.

Step 4: After that, another screen will open up before you. There, you need to select Next.

Step 5: Enter the username and password of your computer and then choose the option of install helper.

Step 6: Then, choose the option of Start Setup.

Step 7: Choose your Region and Country and then select Next.

Step 8: Now, the license agreement dialog box will open up before you. If you wish to continue with the setup process, then select Yes.

Step 9: Now, you are going to see a survey page. Choose Agree or Do not agree to the survey.

Step 10: Then, a status check will appear before you. Wait for the process to get completed.

Step 11: After that, go to the connection method screen and then select yes.

Step 12: If you see select the wireless router screen before you, then choose the wireless router to connect to the printer. After that, you need to enter the password and then select Next.

Step 13: Select Next, once the connection is established.

Step 14: Now, the drivers will get installed. Wait for the installation to get finished.

Step 15: After that, another screen will open up. There, you need to select Allow.

Step 16: Choose the option of Add Printer on your add printer screen.

Step 17: Now, go to the Kind column and select TS series with  Bonjour Multifunction. Now, under the Use drop-down list, select AirPrint or Secure AirPrint.

Step 18: On Add Printer Screen, select next.

Step 19: In case you want to run a test print, then select Execute. If not, then click on Next to continue.

Step 20: Now, the setup complete screen will open up before you. There, you need to select Next.
